VanMate Ultimate Handling Kit VM1-KE01

VanMate VM1-KE01 is the ultimate portable lifting and handling kit.  Optimised for delivery drivers - increasing safety and giving versatility to lifting and moving a wide variety of items up to 250kg.

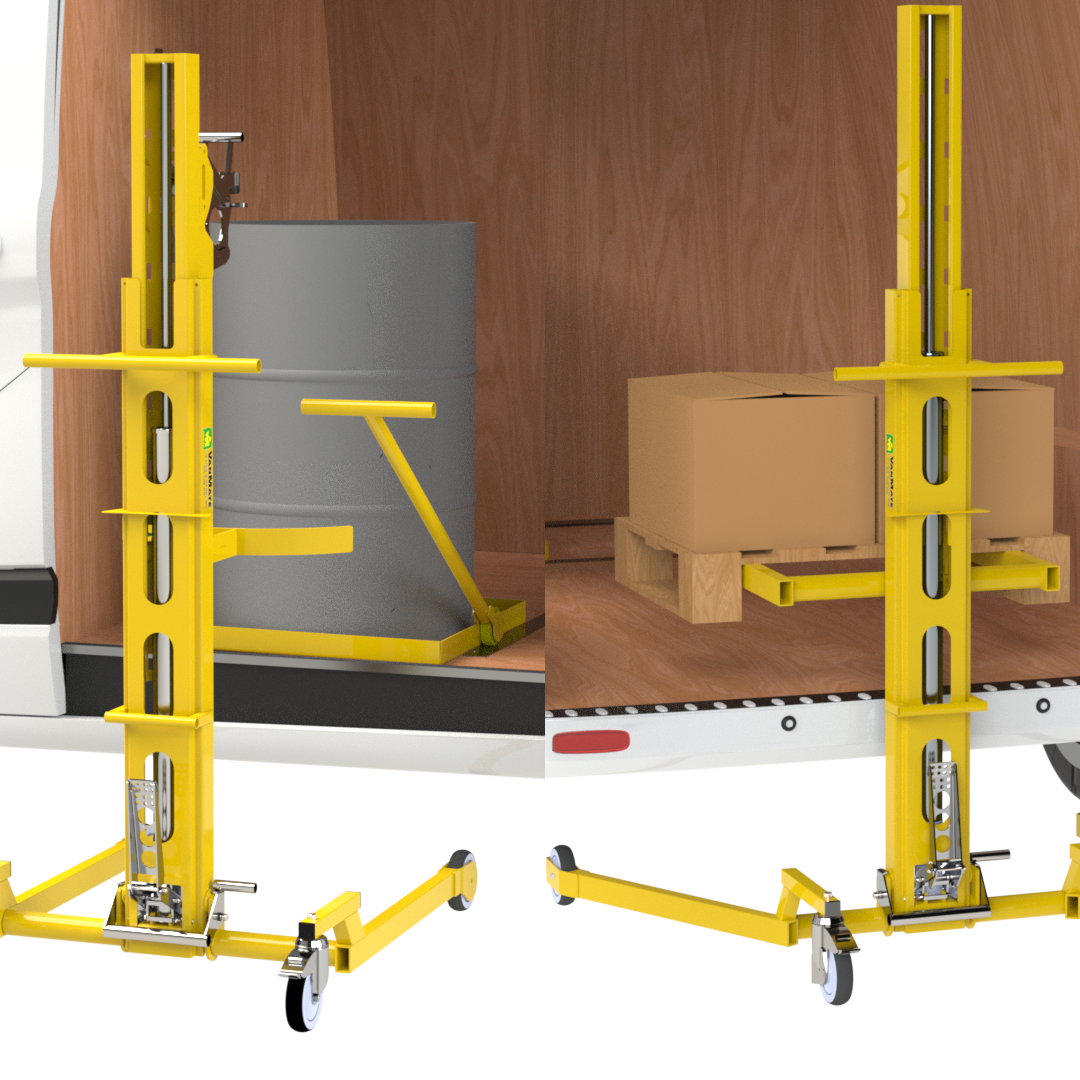

VanMate generally comprises 3 pieces - trolley, mast and relevant attachment for the load. The kit can be assembled, or disassembled, in under 15 seconds for fast turnaround.

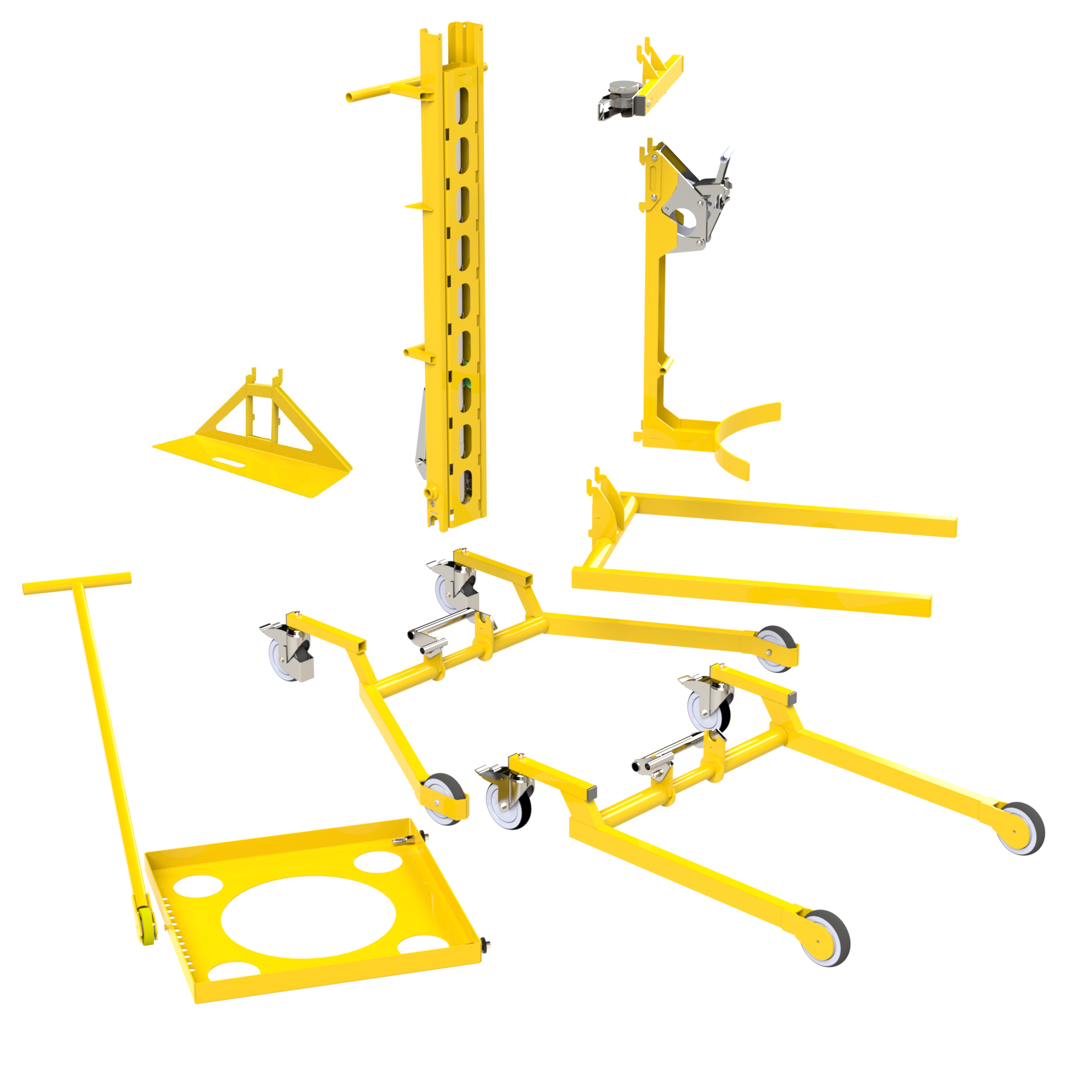

Durable, cost effective and low maintenance this kit comprises:

• 800mm mast
• Standard and pallet access trollies
• Drum gripping attachment and drum harness
• Drum slider and handle
• Flat plate attachment
• Extended Forks
• Belt attachment

Drum & Tote Trolley: primary VanMate multi-use trolley, used for moving drums, totes and engines.

Pallet Access Trolley: 60° angled trolley ideal for accessing pallet corners and drum bunds, manoeuvring from bund to van.

Drum Gripping Attachment: secures most plastic and metal drums around the top lip. Curved base supports 285mm diameter/205L metal and plastic drums up to 250kg.  Suitable for:

• Metal Oil drums - Engine Oil, Machine Lubricant
• Plastic Drums - AdBlue and other chemicals
• Fuels, Biodiesel & Gasoline drums
• Waste Oil and Grease reclamation using metal drums with removable lid

VanMate Slider & Handle: Allows heavy drums to be stored more safely near the bulkhead, helping balance the centre of gravity of the van.

Flat Lifting Plate: Ideally suited to handling flat-bottom goods with low ground clearance, such as machinery, appliances and boxed parcels.

Extended Forks: designed for handling mechanical parts or machinery, often suspended in a pre-fabricated stillage or crate.  Suitable for:

• Engines, Gearboxes & Differential Parts
• Farming & Construction Vehicle Components
• Machinery Items
• Generators & Pumps
• Bulky Site Equipment

Belt Attachment: offers additional security when manoeuvring bulky loads.

Features:

DuoPump Technology: VanMate uses the patented ‘DuoPump’ technology, allowing the unit to lift 6 times faster for light loads. Saving up to 70% of lifting time. The system employs a direct drive piston arrangement, eliminating need for maintenance of exposed chains, and eliminating associated safety hazards of moving parts.

Braked Rear Castors: Using precision ball bearing for rotation and swivel operation, both castors are fitted with braking mechanisms which brake both the swivel and rotation to allow additional security on inclines.

Optional Extra - Door Mounting Kit - store your mast and attachments on your van doors and walls for remote delivery of a range of loads.
